Off-Grid Hospitality.

Two ground-up concepts on the Mogollon Rim — a dual-container homestead with large covered outdoor area for events, teaching and community. And a 12-unit off-grid expandable motor lodge. Full preliminary architectural, structural, and MEP sets below.

G-0.0Sheet Index
A-1.0Chevelon Canyon — Site Plan
A-3.0Chevelon Canyon — Cabin Plan
A-100Expandable Container Plan — Paired Units
C-100Expandable Container Plan — Site & Micro-Grid
A-1.0Single Building Plan — Floor Plan
A-2.0Single Building Plan — Security Detail
M-1.0Single Building Plan — MEP Set
SITE 01 — RESIDENTIAL

Chevelon Canyon
Homestead

CHEVELON CANYON AREA
NAVAJO COUNTY, AZ — ~6,000 FT AMSL
56′-0″ × 44′-0″ OVERALL FOOTPRINT
PRELIMINARY — NOT FOR CONSTRUCTION

Two 40ft high-cube containers — one secure storage bay, one off-grid living cabin — joined by a 40’×40′ steel-trussed breezeway carrying a roof-mount solar array. Closed-loop water, hybrid graywater reuse, portable blackwater cassette, and DC/AC hybrid power with no utility interconnection.

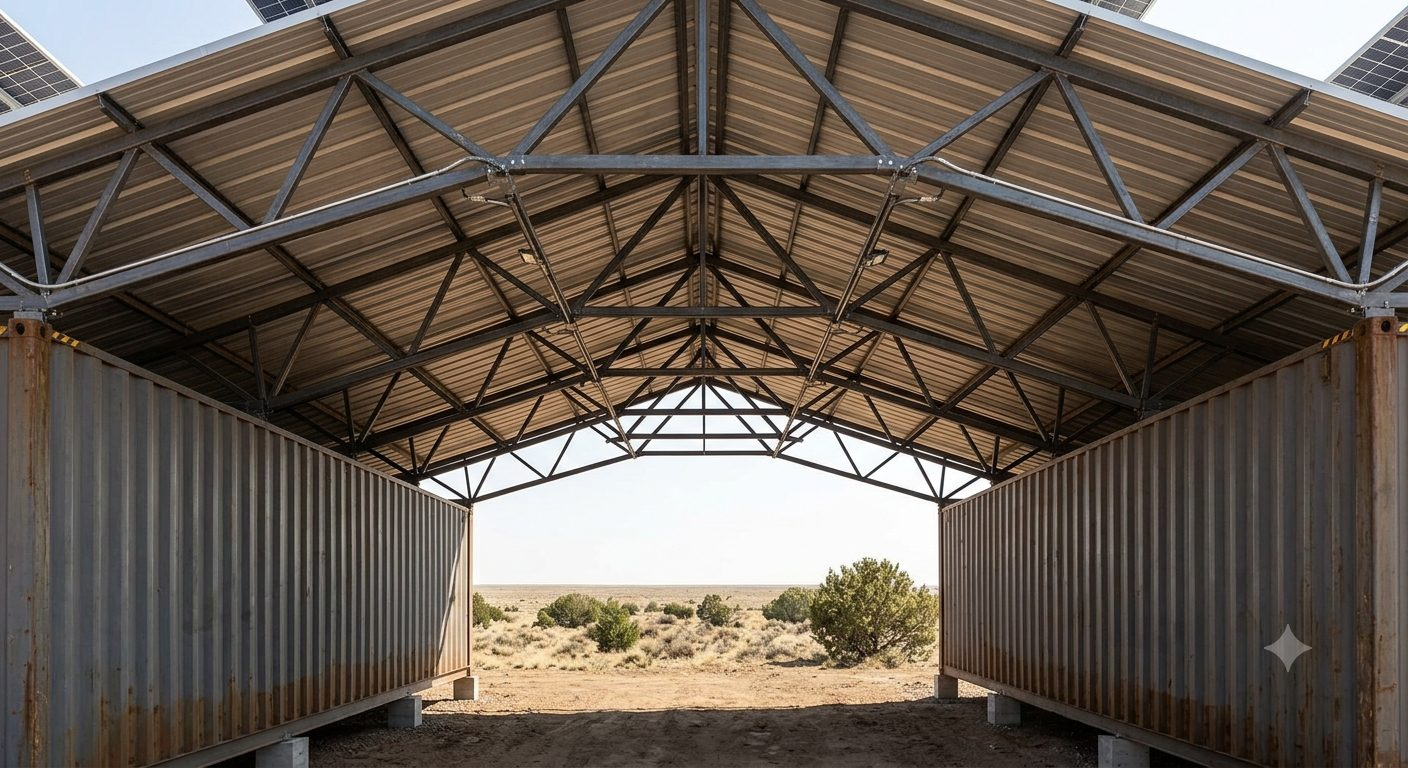

Chevelon Canyon homestead — exterior view of breezeway between two containers
EXTERIOR — BREEZEWAY BETWEEN CONTAINER A / CONTAINER B

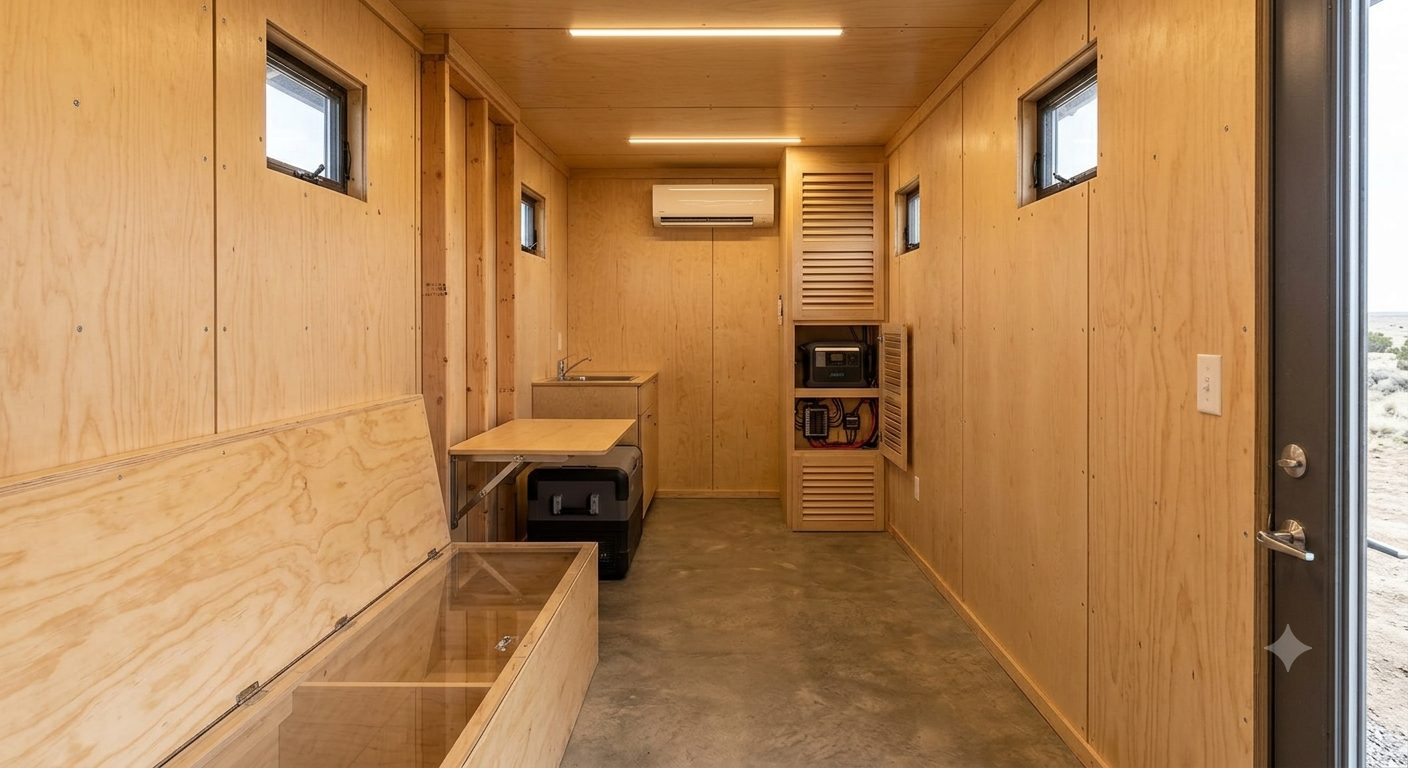

Cabin interior, kitchenette and systems bulkhead
CABIN INTERIOR — KITCHENETTE / SYSTEMS BULKHEAD

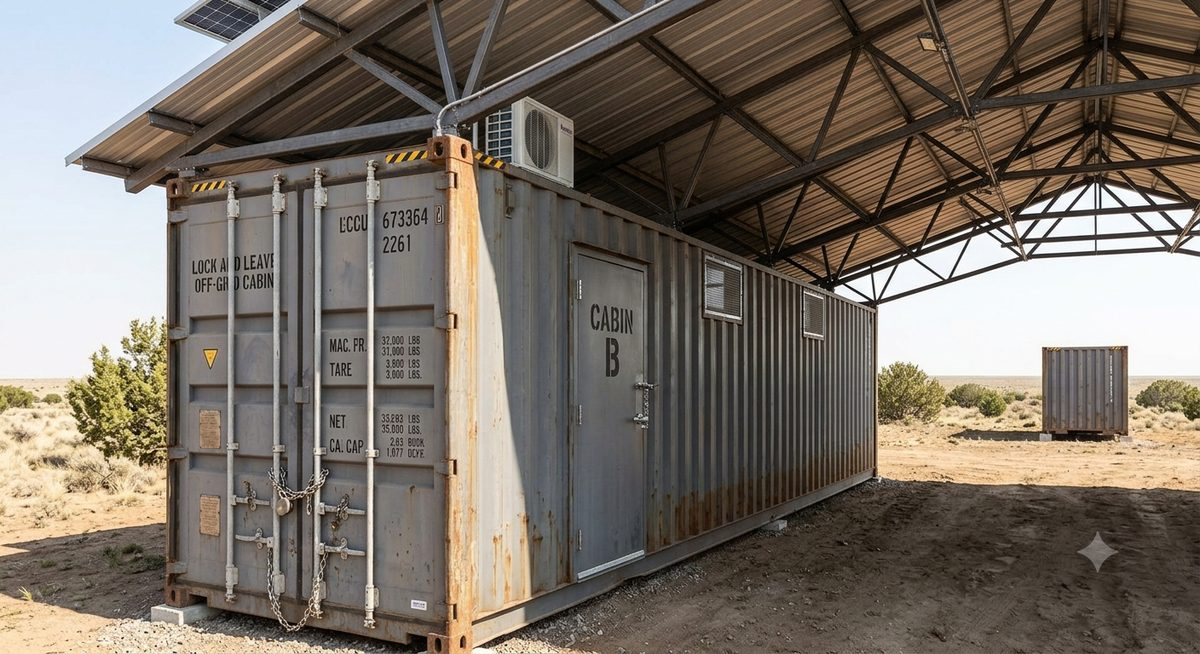

Container B exterior, labeled cabin door
CONTAINER B — CABIN ENTRY

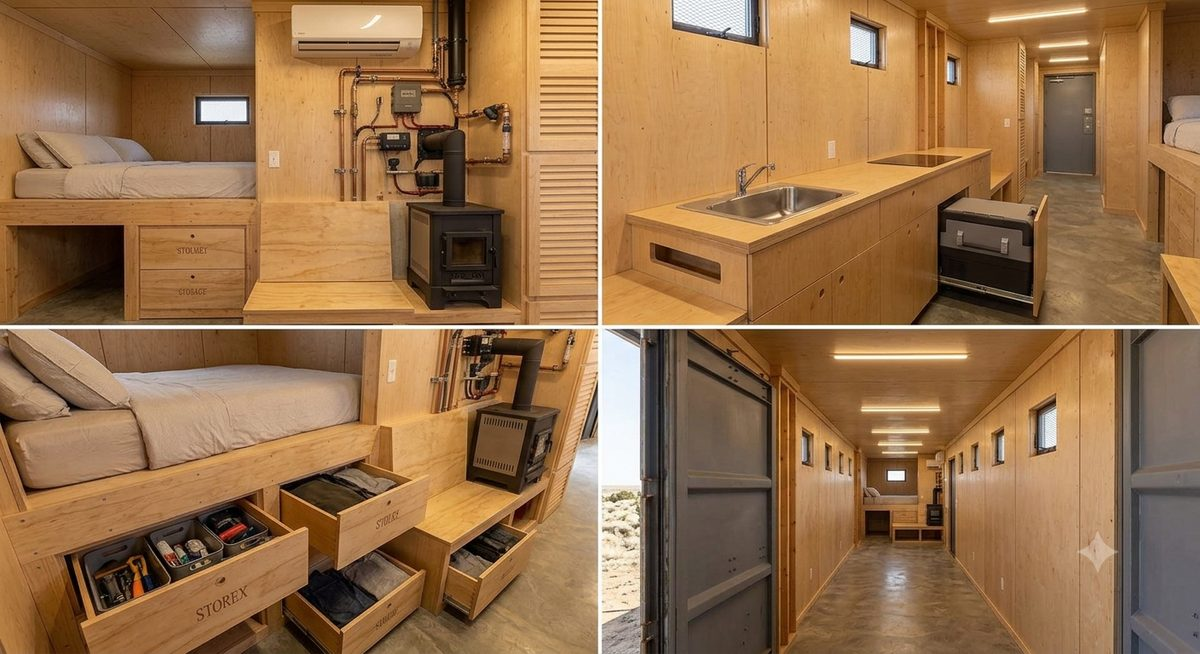

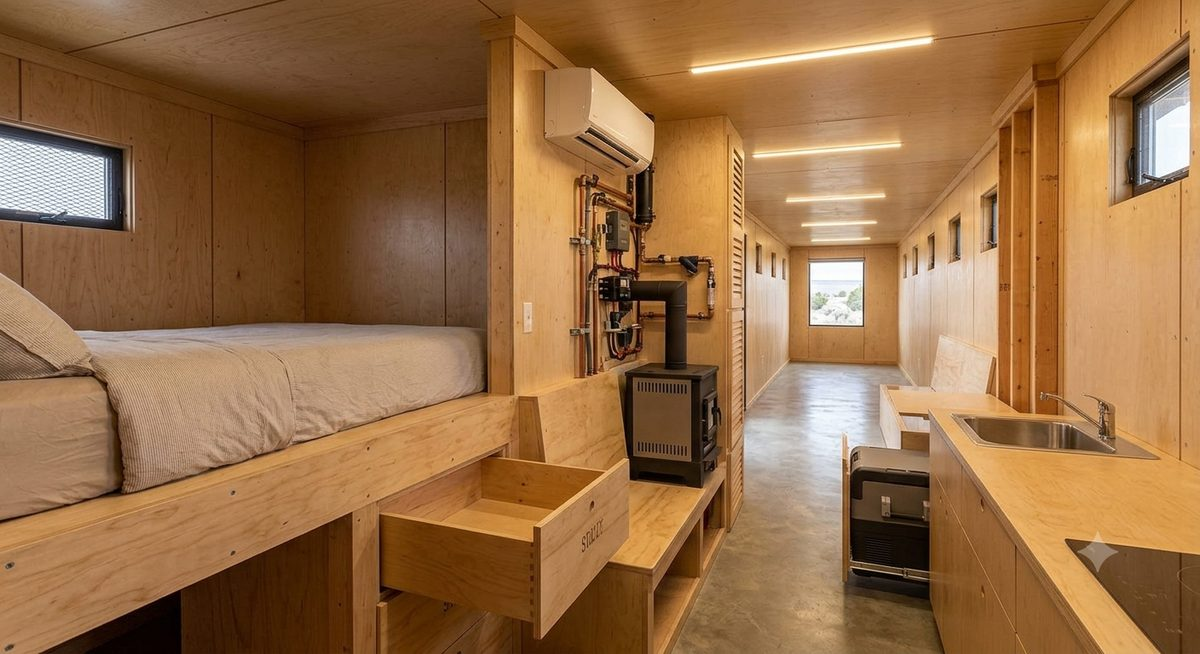

Bunk and stove interior detail
SLEEPING BERTH — WOOD STOVE
Storage drawers and corridor detail
STORAGE / CORRIDOR DETAIL

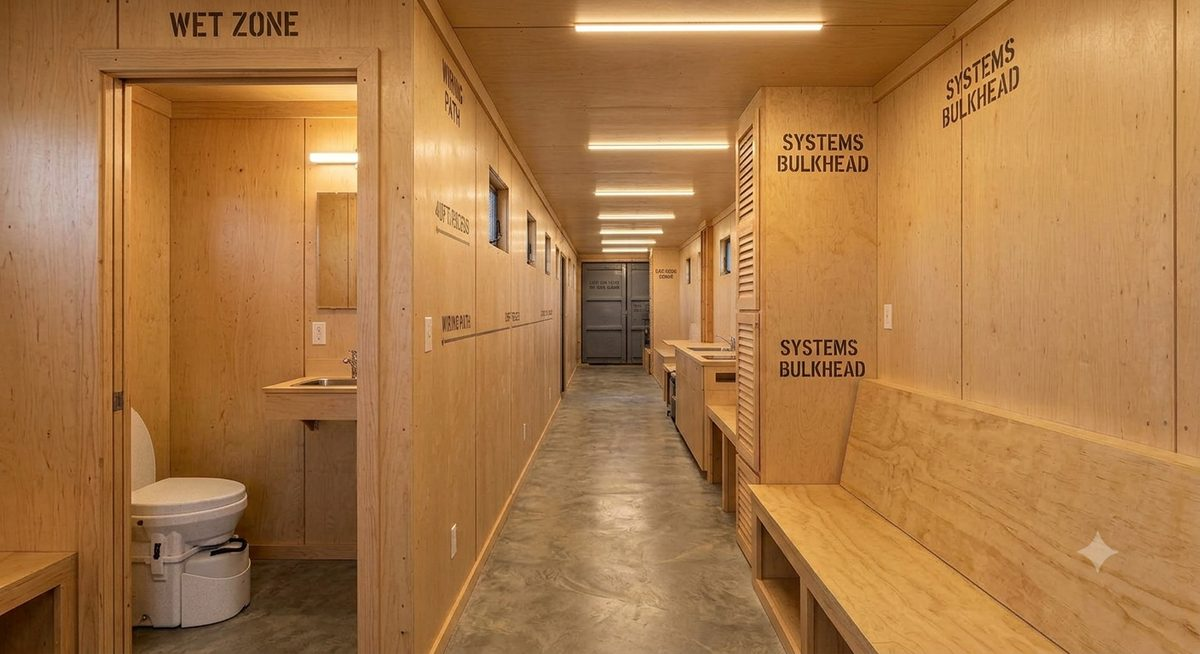

Wet zone and systems bulkhead corridor
WET ZONE — SYSTEMS BULKHEAD
G-0.0 → BOM-1.0 Full Design-Intent Package Cover sheet, foundation & roof framing, floor plans, elevations, MEP one-lines, and bill of materials. OPEN DOCUMENT →
SITE 02 — HOSPITALITY

Sierra One Stays
Expandable Container Plan

NORTH OF HEBER, AZ — NAVAJO COUNTY
6 × 40FT HIGH-CUBE CONTAINERS
12 PAIRED GUEST ROOMS — CENTRAL WET CORE
PRELIMINARY — NOT FOR CONSTRUCTION

An alternate massing for the same 12-room program: six 40ft high-cube containers, each split into two paired guest rooms (A-101/A-102) sharing a central wet core. Below-floor insulated steel drop-frame carries the wastewater lines to a 1/4″/ft slope tie-in, fed by a PEX-A manifold and booster pump. Site plan runs a shared DC micro-grid and central plumbing spine across all six units.

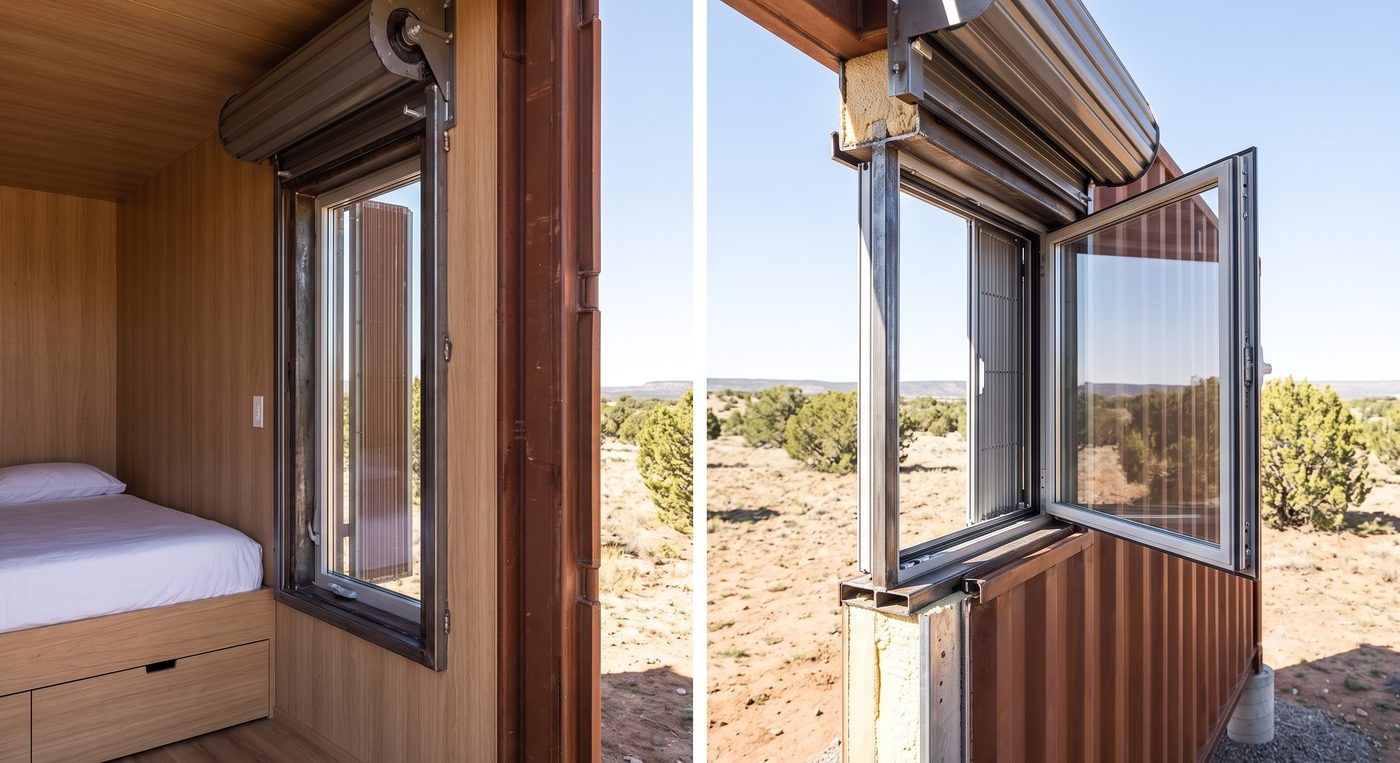

Exterior of paired container guest rooms with operable steel-frame windows and security shutters
EXTERIOR — OPERABLE WINDOW / SECURITY SHUTTER DETAIL

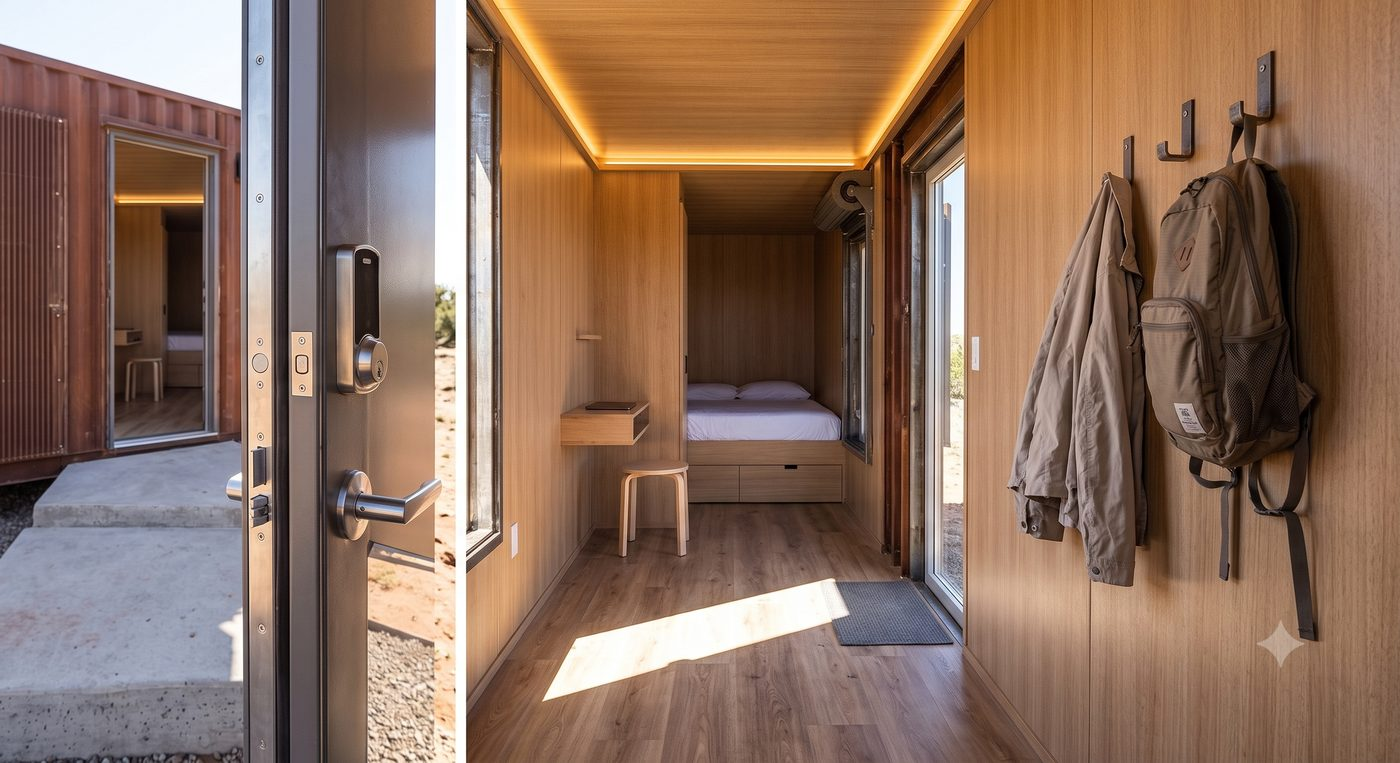

Guest room entry door with electronic keypad lock and interior bed nook
ENTRY — ELECTRONIC KEYPAD / GUEST ROOM NOOK

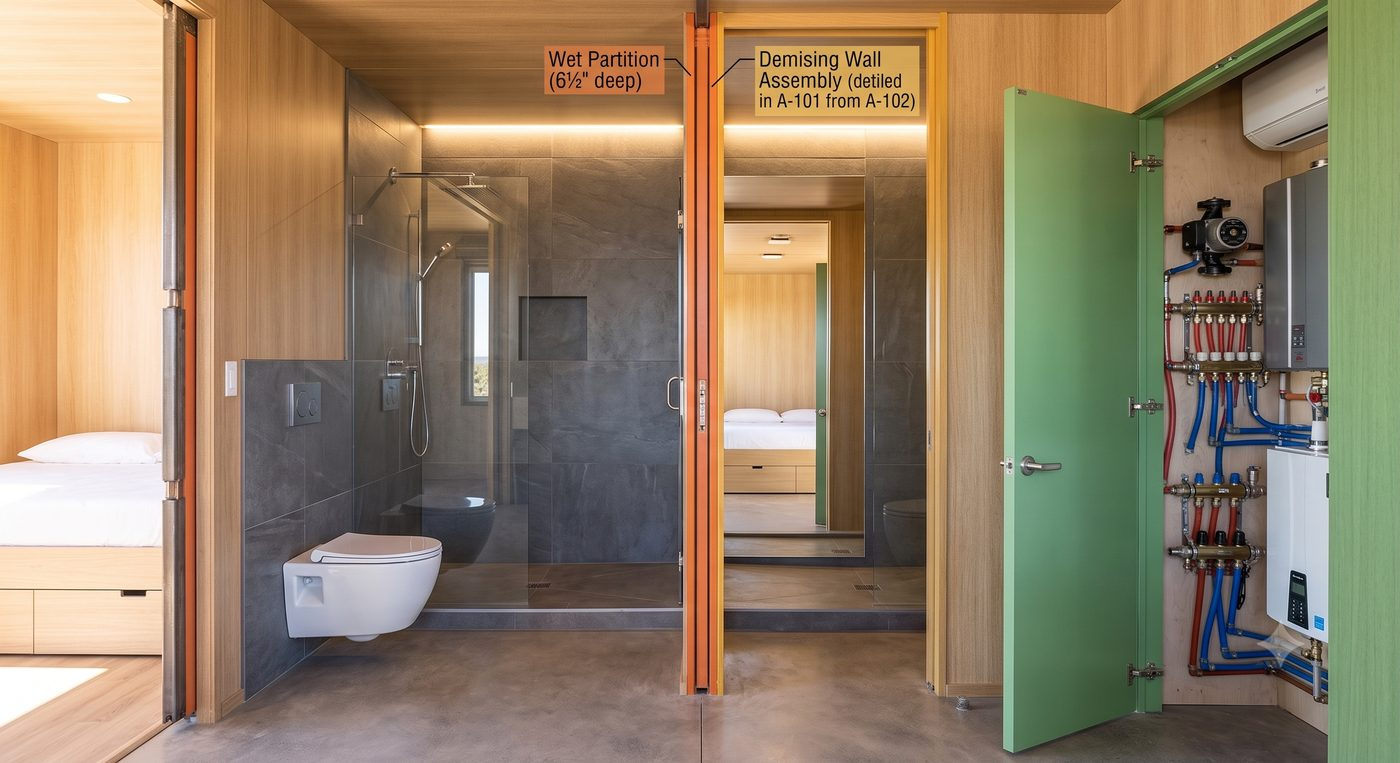

Central wet core bathroom shared between paired guest units, labeled wet partition and demising wall
CENTRAL WET CORE — SHARED PARTITION DETAIL

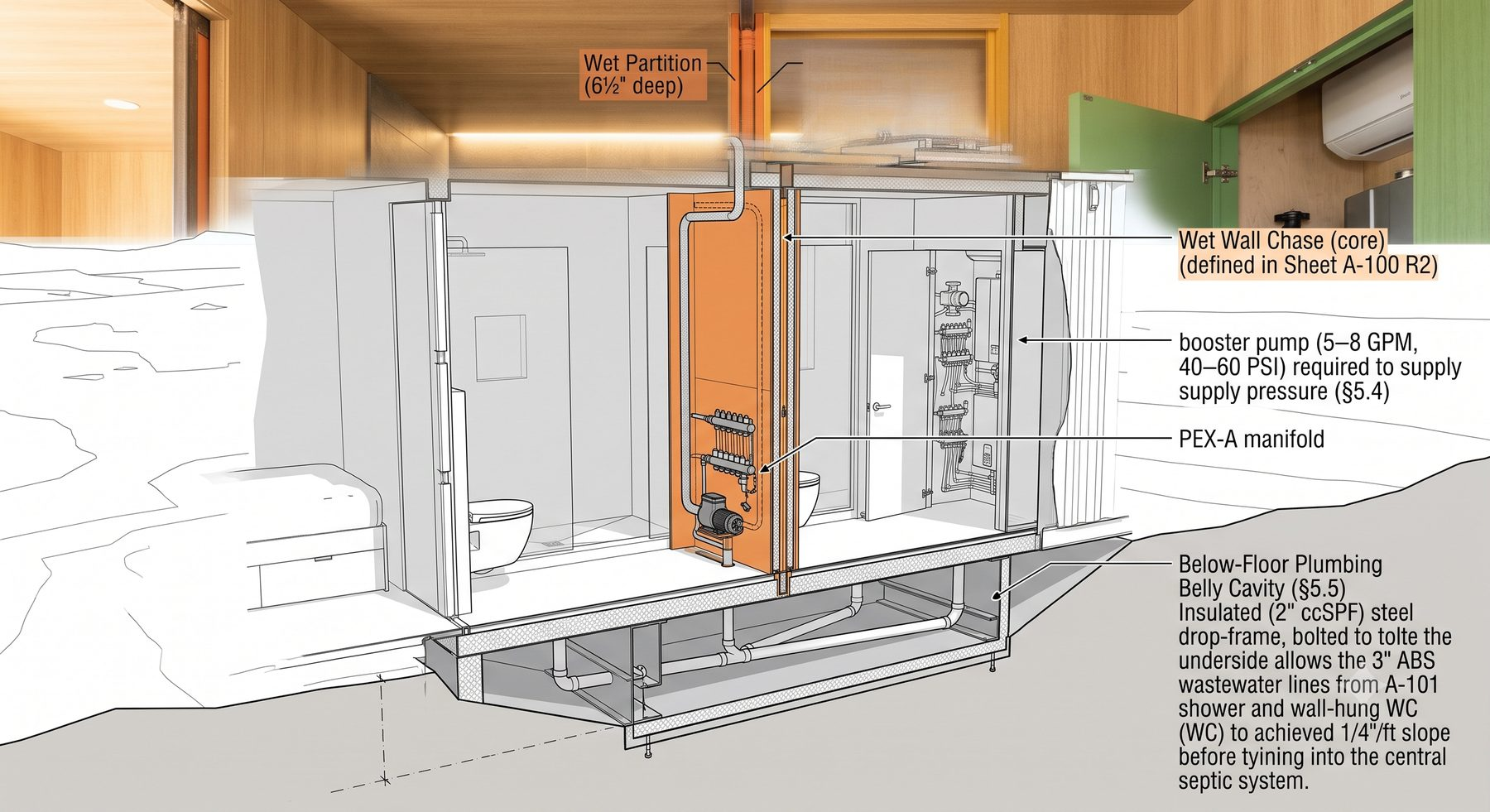

Cutaway diagram of wet wall chase, PEX-A manifold, booster pump and below-floor plumbing belly cavity
CUTAWAY — WET WALL CHASE / BELOW-FLOOR PLUMBING
A-100 / A-101 / A-102 Container Cabin — Paired Units Central wet core plan, demising wall assembly, PEX-A manifold and below-floor plumbing detail. OPEN DOCUMENT → C-100 / E-100 / P-100 Site Plan, DC Micro-Grid & Central Plumbing Six-container site layout, shared DC micro-grid distribution, and central plumbing spine. OPEN DOCUMENT →
SITE 02 ALT — HOSPITALITY

Sierra One Stays
Alternate Single Building Plan

NORTH OF HEBER, AZ — NAVAJO COUNTY
ELEV. ~6,700 FT
12-UNIT MOTOR LODGE — PRE-ENGINEERED METAL BLDG
PRELIMINARY — NOT FOR CONSTRUCTION

A single pre-engineered steel building split into 12 lock-and-leave guest bays under a covered walkway, with rolling security shutters, hardened 16-ga steel doors, and a 30+ kW roof-mount solar array. Off-grid utilities — tank, generator, batteries — relocated to the rear of the building, out of the guest circulation path.

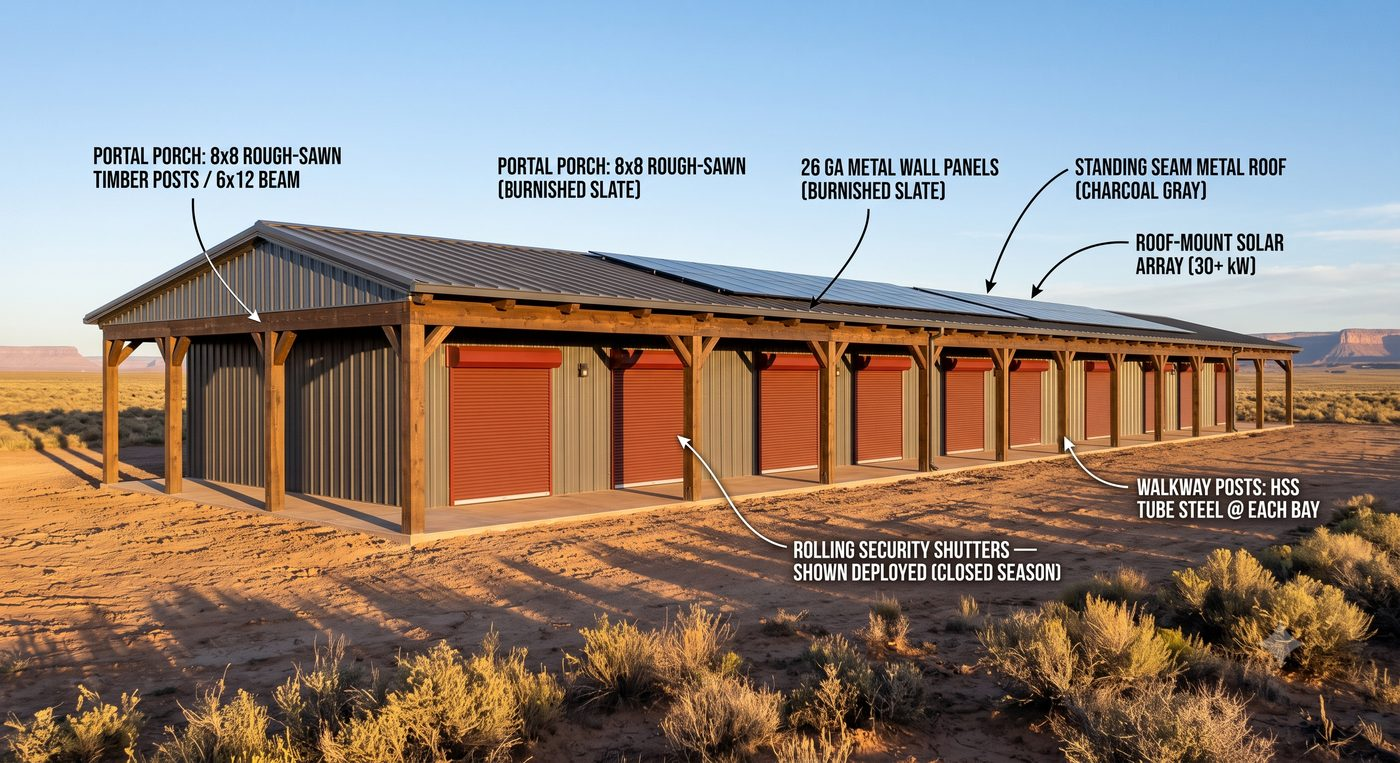

Sierra One Stays exterior, full building elevation with solar array
EXTERIOR ELEVATION — 12-BAY BUILDING, SOLAR ARRAY

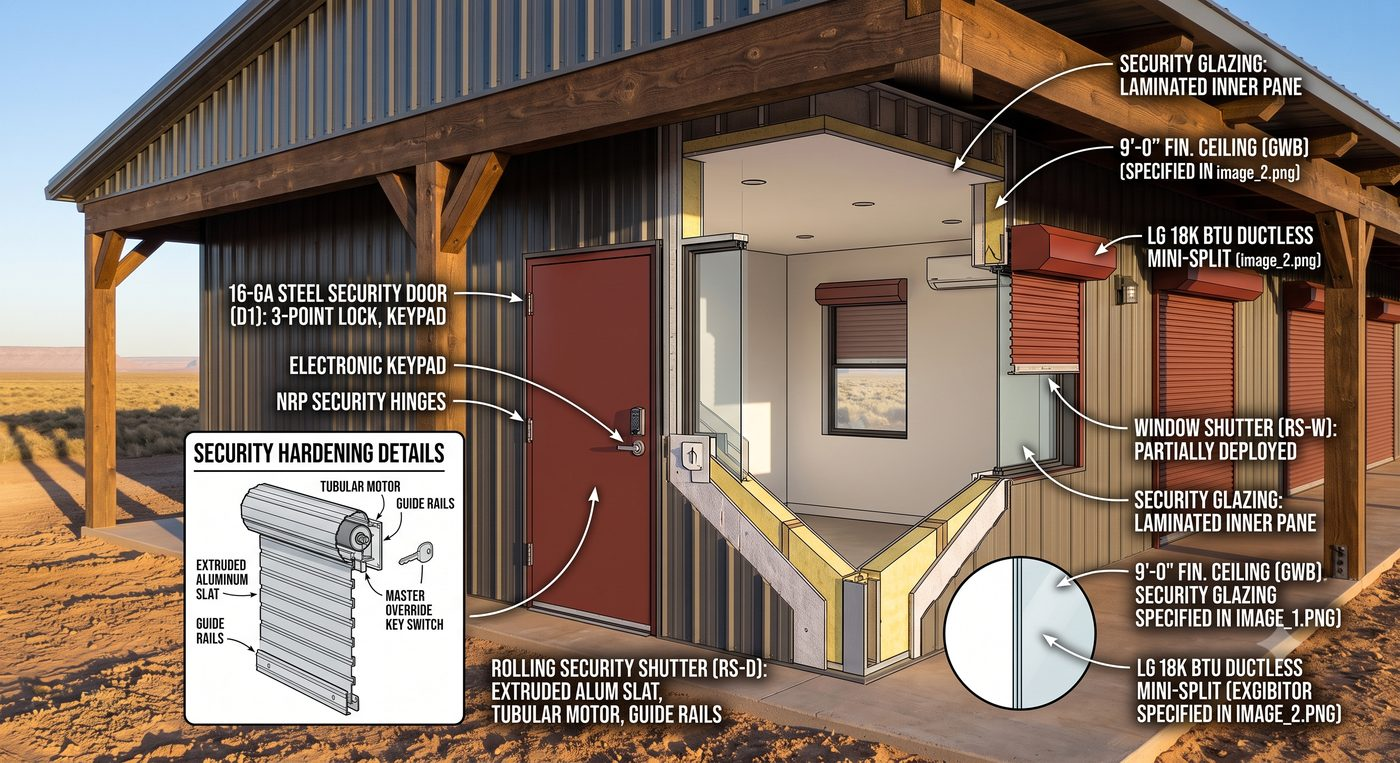

Security hardening detail, guest door and shutter
SECURITY HARDENING — DOOR / SHUTTER DETAIL

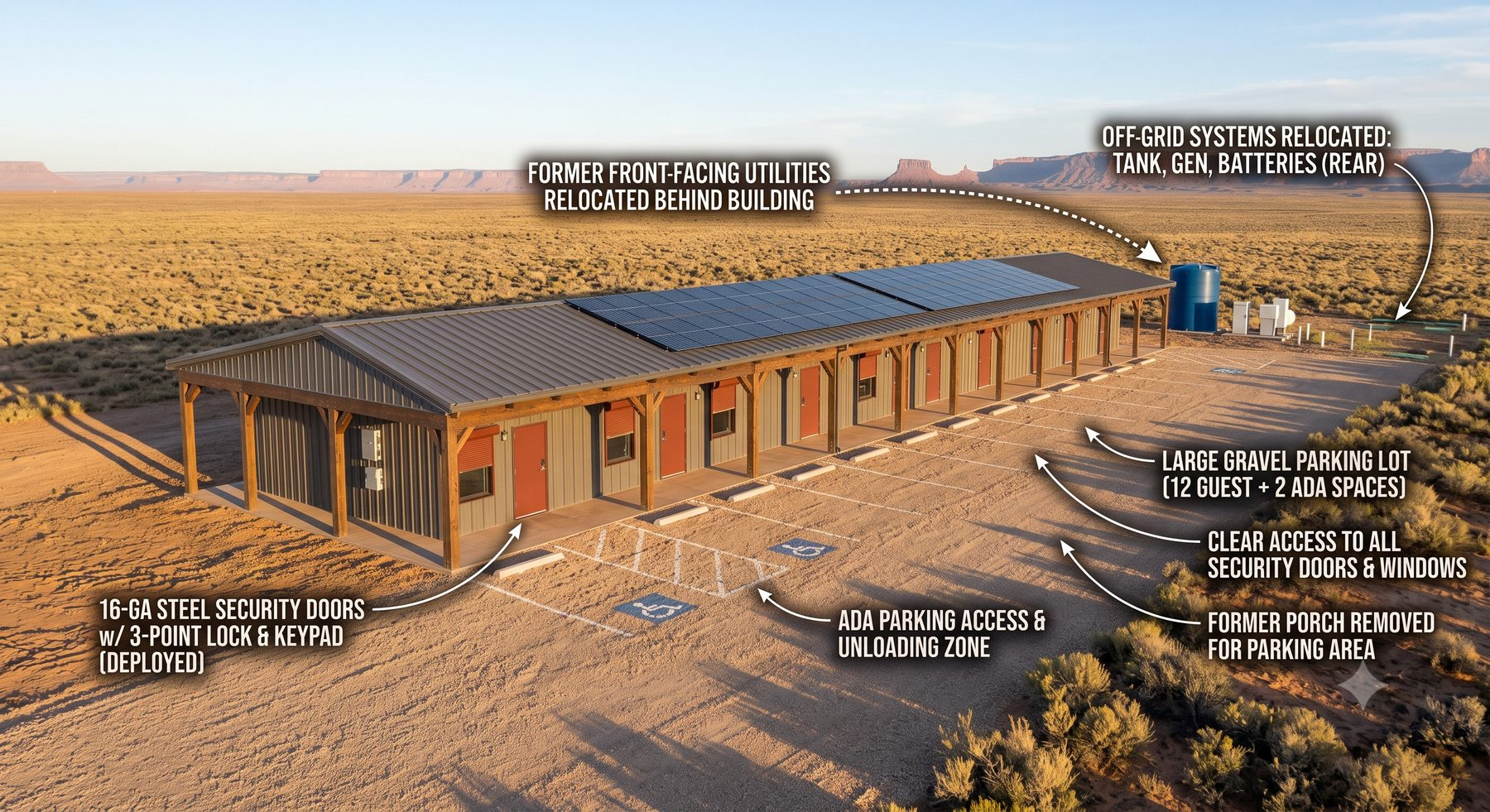

Aerial view of Sierra One Stays with parking and rear utilities
AERIAL — PARKING, ADA ACCESS, REAR UTILITY YARD
A-1.0 Floor Plan & Details Unit layout, walkway framing, ADA units, general notes and design loads. OPEN DOCUMENT → A-SET (SECURED) Full Architectural Set Complete architectural drawings including security hardening details. OPEN DOCUMENT → M-1.0 MEP Drawings Power one-line, solar array layout, water/wastewater and propane schematic. OPEN DOCUMENT →
